ADL Busduct Product Introduction
Product Description
Powermax Busduct is an ideal product with small size, fast heat dissipation, high load capacity and excellent performance developed by ADL Group. The busbar trunking system fully absorbs the latest technology in the world today and combine the company's more than 20 years of manufacturing experience. It can be used in various fields to meet different power distribution needs. ADL bus duct is a safe power distribution system with very high electrical efficiency, low voltage drop, high mechanical strength and so on.
Product Application
ADL bus duct is widely used in the power distribution and supplying system for large shopping malls, real estate buildings, hotels, hospitals, industrial plants, gymnasiums, and other electrical engineering projects.
Product Details
(1) Transformer Connection (2) Joint (3) Straight Feeder (4) Horizontal Hanger (5) Horizontal Elbow (6) Vertical Elbow (7) Vertical Offset Elbow (8) Combination Elbow (9) Tap-off Box (10) Spring Hanger
ADL Busduct Parameter Sheet
| Conductor Type | Copper, Aluminum, or Bimetal |
| Rated Currents | 250-6300A |
| Frequency | 50Hz/60Hz |
| Rated Voltage | 1000V |
| Product Series | Low Voltage Compact Busway |
| IP Class | IP54/IP65/IP66 |
| System | 3P3W/3P4W/3P5W |
| Design standard | IEC61439-1；IEC61439-6 |
Product Features

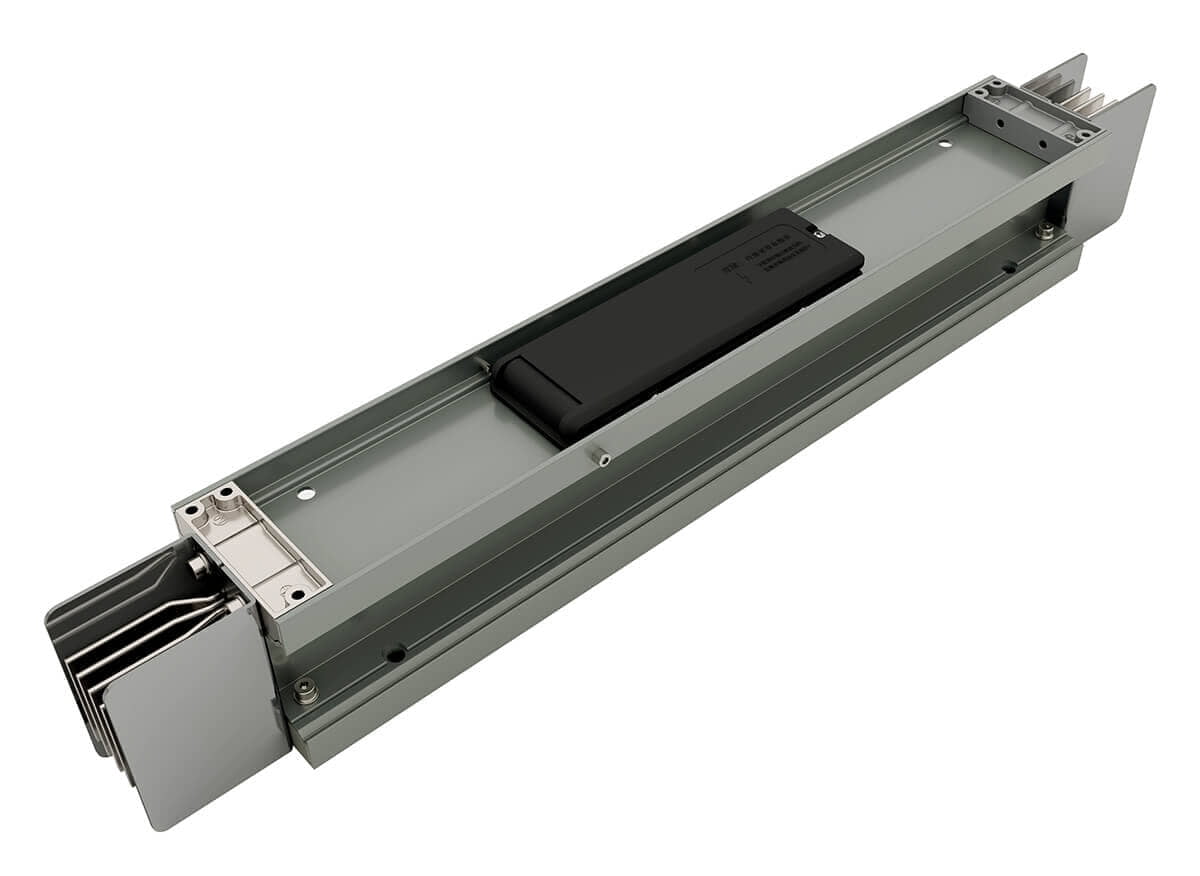

ADL Powermax Busduct adopts reasonable "sandwich" structure design, with excellent heat dissipation performance and high electrical conductivity.

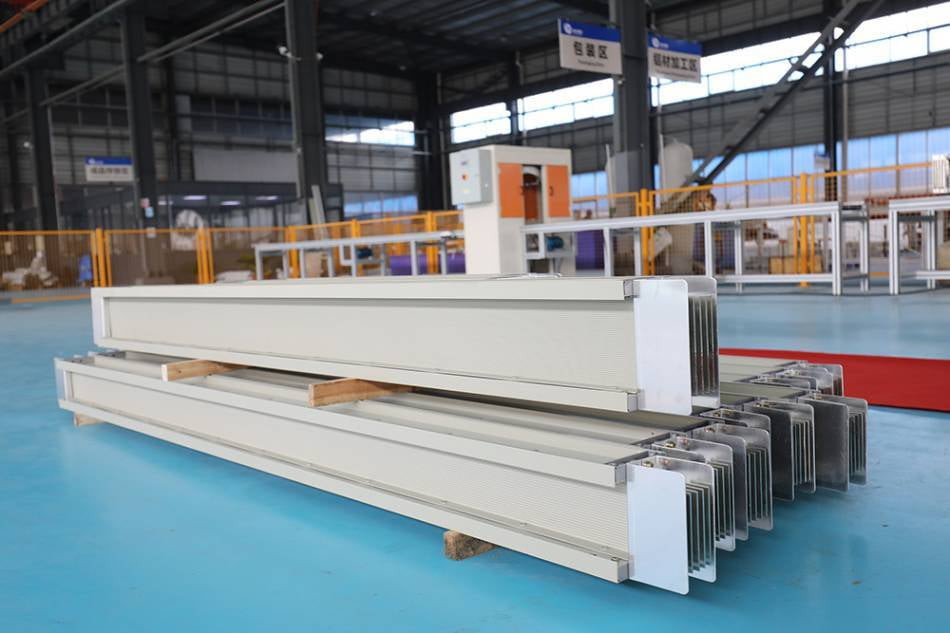

The bus duct's housing is made of light weight, molded, fully enclosed aluminum-magnesium alloy profile with excellent rust and corrosion resistant performance. The overall housing has more than 50% grounding capacity and can be used as PE row. The busbar trunking system has low hysteresis eddy current loss, light weight, high strength, low electrical resistance, and good heat dissipation, etc. The highest protection level can be up to IP66.
Related Products

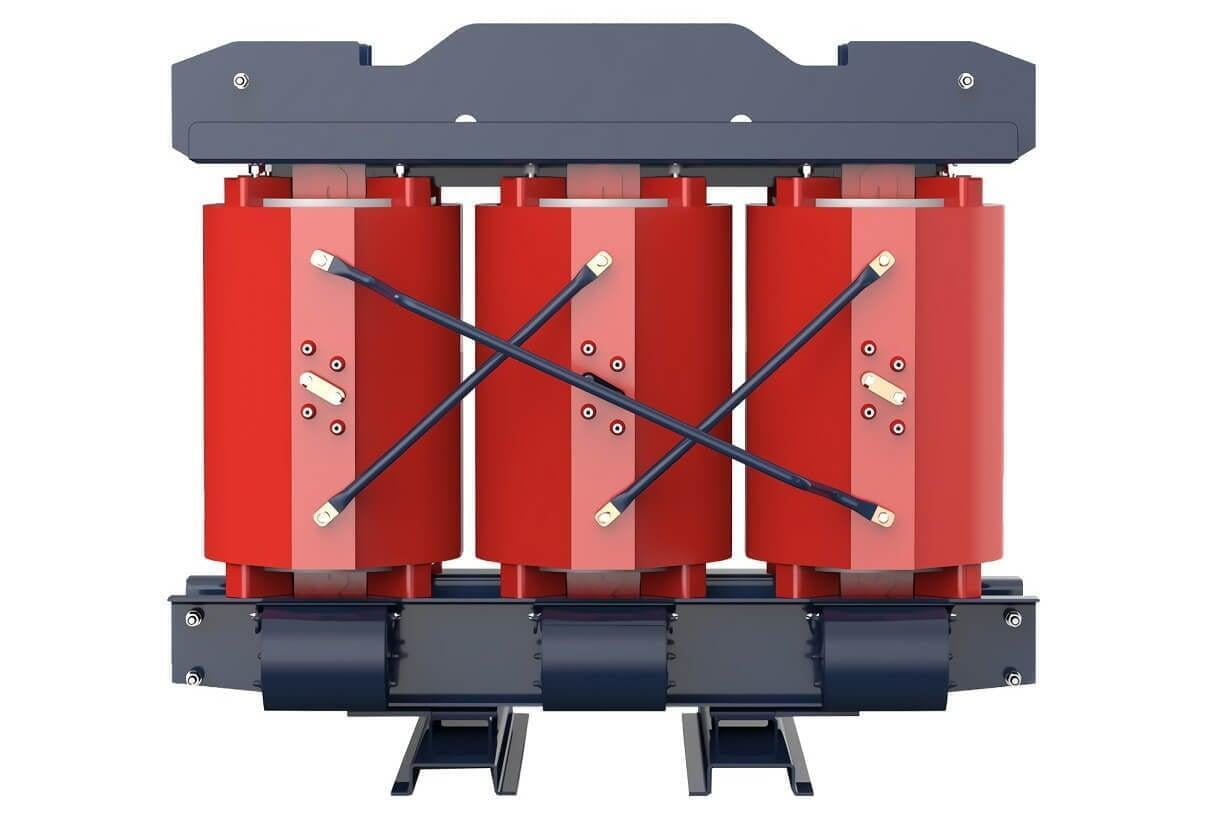

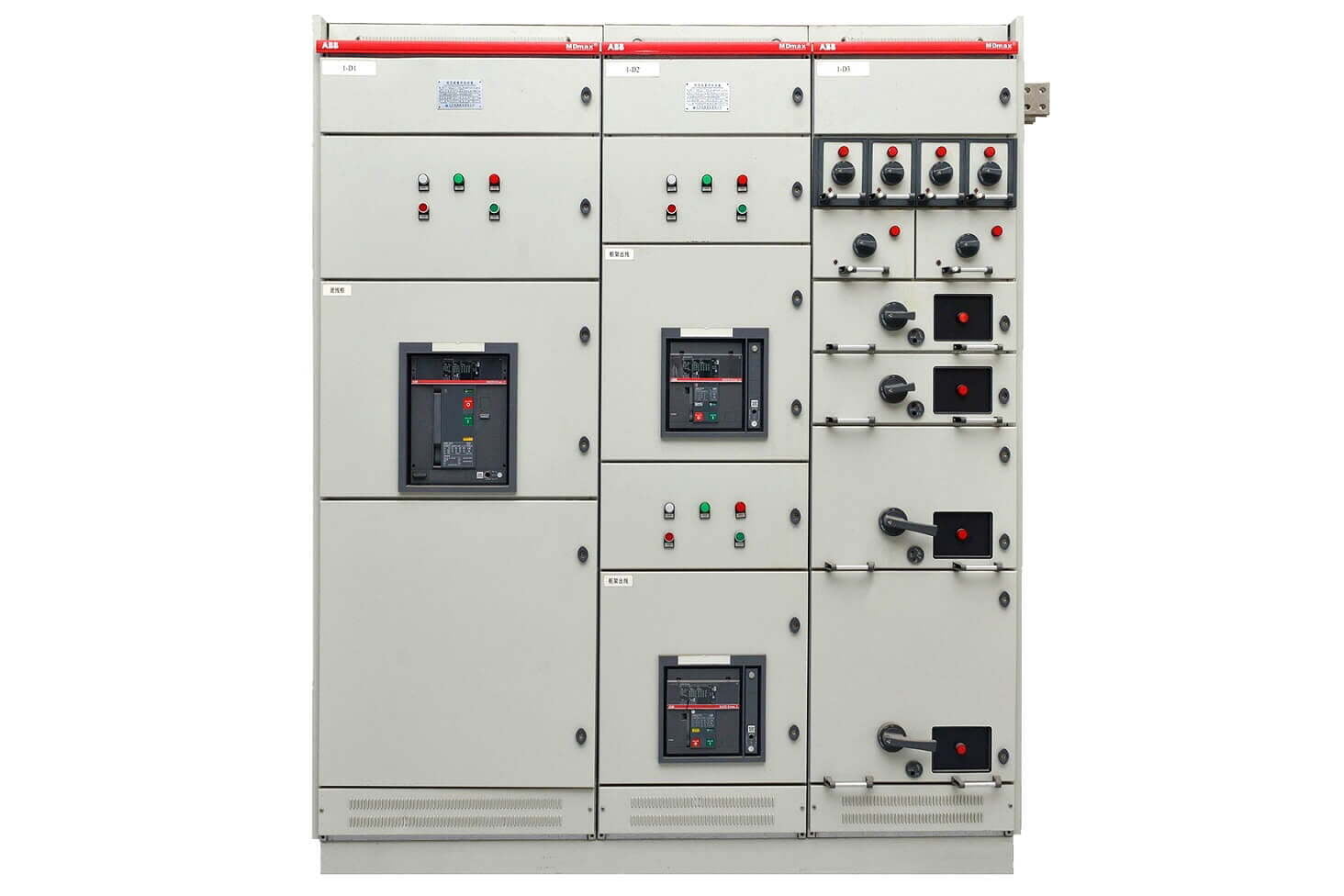

Besides busduct, ADL Power also provides related products used in the power transmission and distribution system, such as the cable trays, high and low voltage switchgear, distribution boards, dry type casting transformer, and so on.
Cable Trays
Distribution Board
